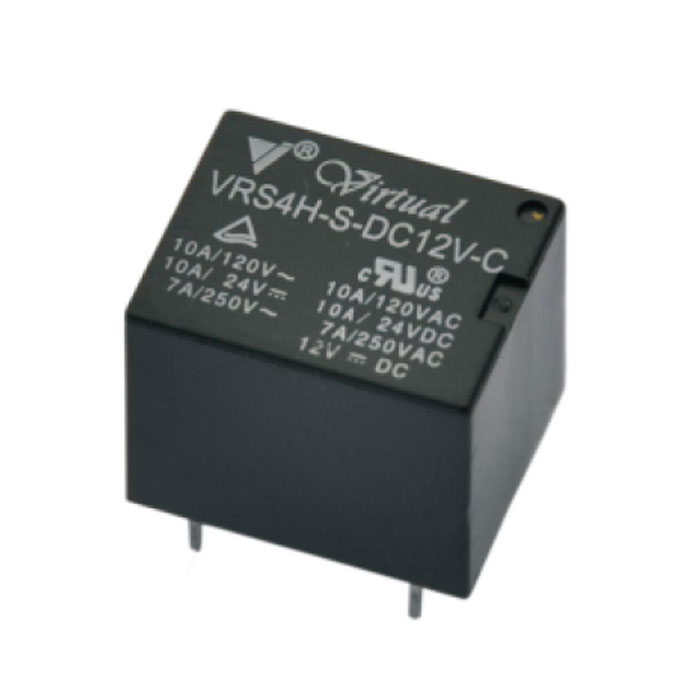

| Type | VRS4H |
|---|---|
| Dimensions (L x W x H) | 19.0 x 15.2 x 15.5 |
| Contact Rating | |
| Contact Form | 1A / 1C |
| Contact Material | AgSn02, AgCd0 |
| Rated Load (Resistive load) | 7A / 250VAC / 28VDC |

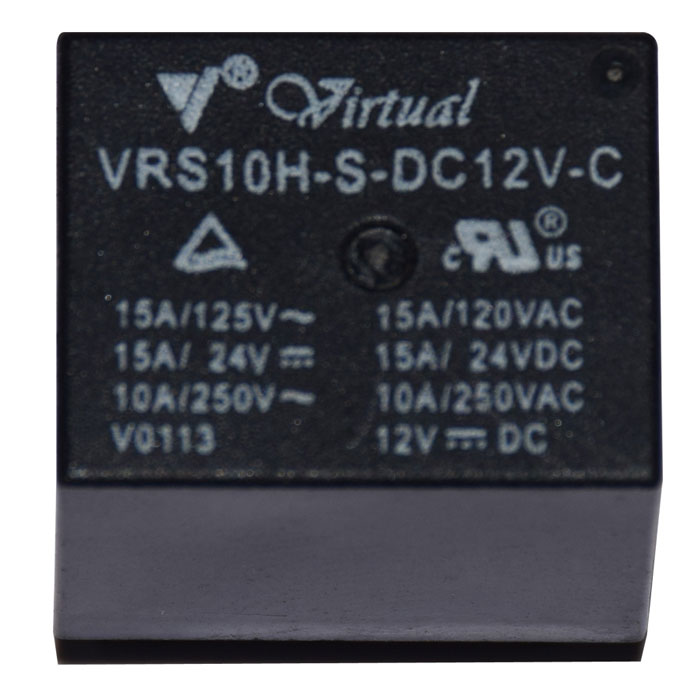

| Type | VRS10H |
|---|---|
| Dimensions (L x W x H) | 19.0 x 15.2 x 15.5 |
| Contact Rating | |
| Contact Form | 1A / 1C |
| Contact Material | AgSn02, AgCd0 |
| Rated Load (Resistive load) | 10A / 250VAC / 28VDC |

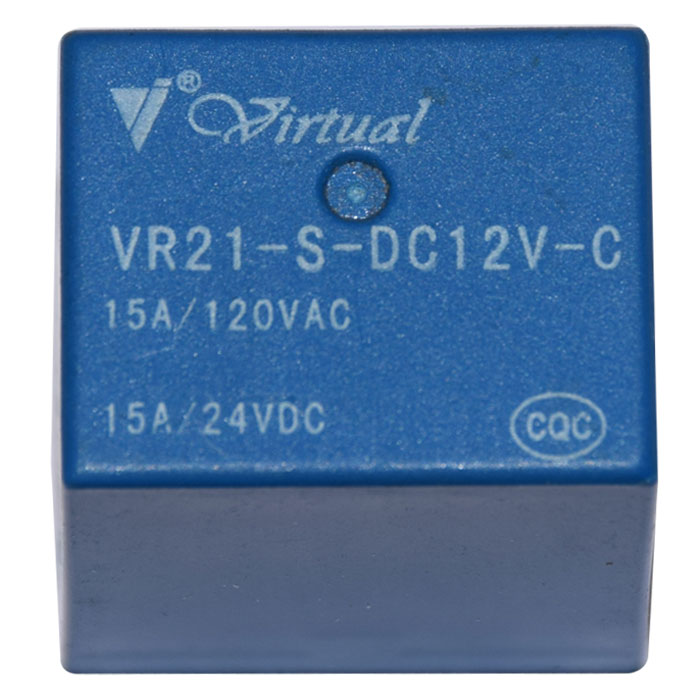

| Type | VR21 |
|---|---|
| Dimensions (L x W x H) | 20.2 x 16.5 x 20.2 |
| Contact Rating | |
| Contact Form | 1A / 1C |
| Contact Material | AgSn02, AgCd0 |
| Rated Load (Resistive load) | 1A, 1B: 15A / 120VAC TV-5 120VAC 1C: 10A / 120VAC / 24VDC |
